Description

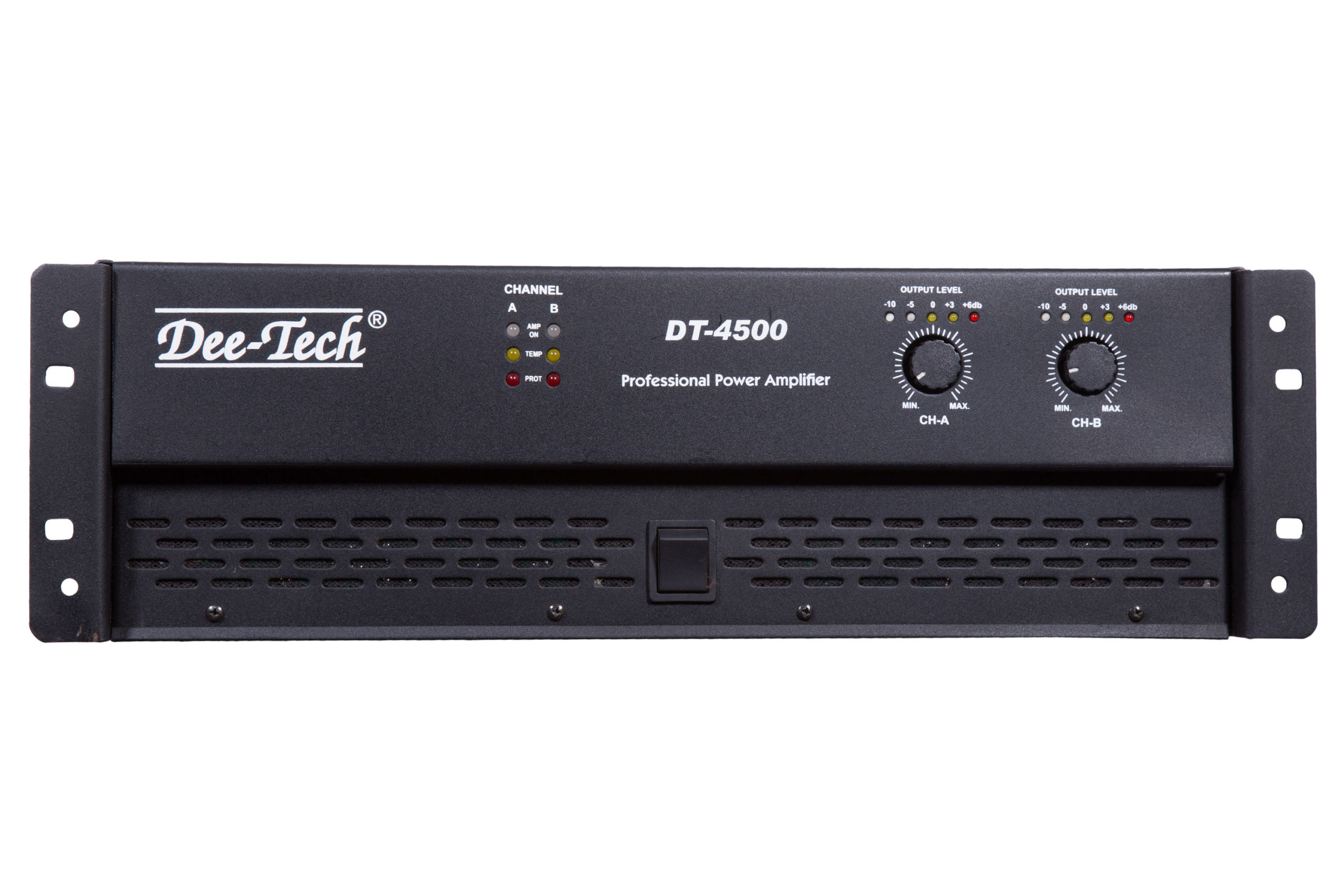

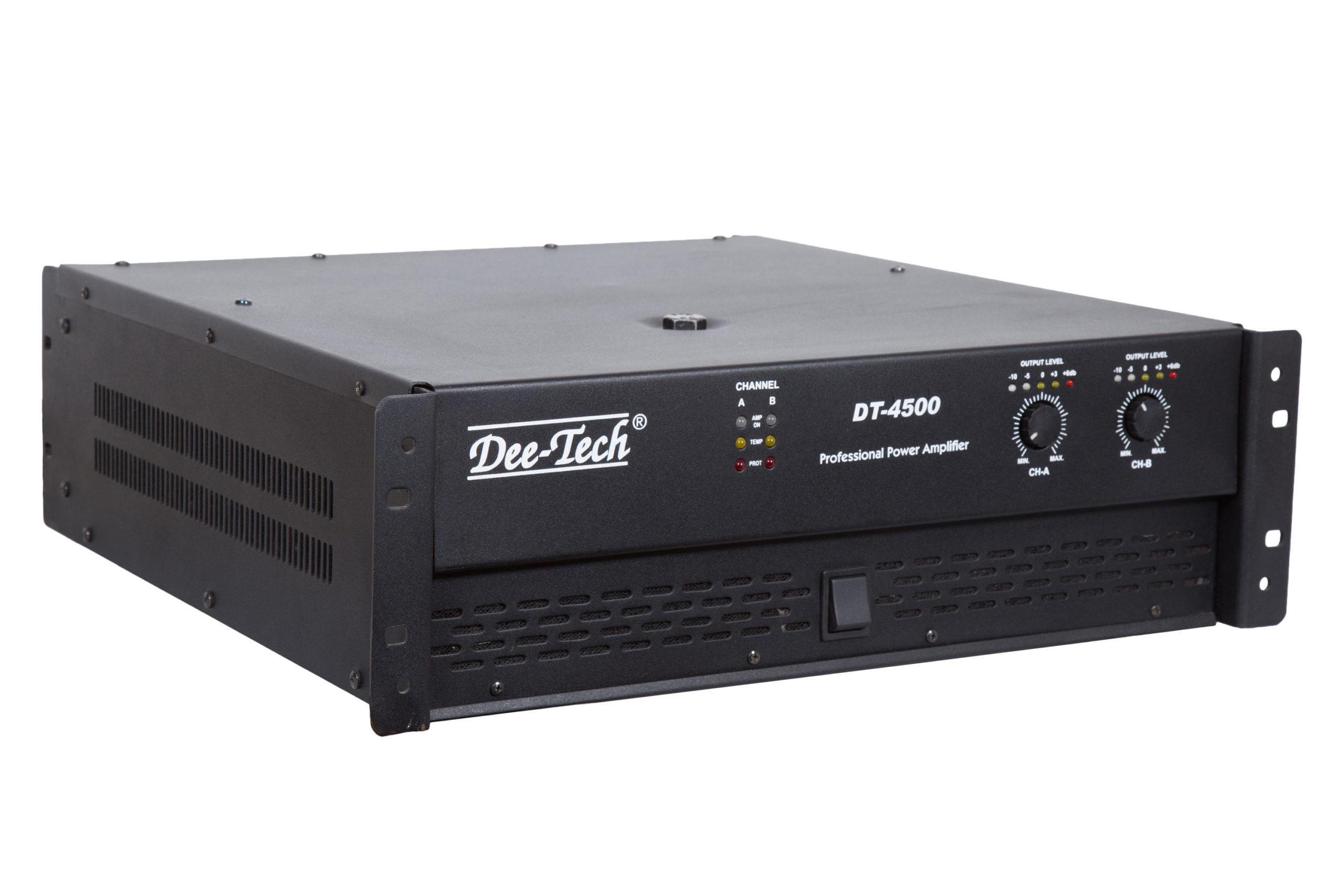

DEE-TECH PROFESSIONAL 4500 WATT POWER AMPLIFIER
DT-4500 POWER AMPLIFIER
Model No: DT-4500
Product: Power Amplifier
Watts: 4500 Watts
Specification:
DT-4500
Power Supply: 230V AC
Power Output: 1550 + 1550 Watts in 2 ohms
1150 + 1150 Watts in 4 ohms
700 + 700 Watts in 8 ohms
70 & 100 W Line (Used with LMT)
Input: IV/200mV Line in & 200mV Stereo Input
Freq. Response: 20 Hz-20 kHz
Size: H 210 x L 620 x W 600 MM
Weight: 32.5 Kg
Features
• Balanced / unbalanced inputs signal through parallel XLR connector in both channels.

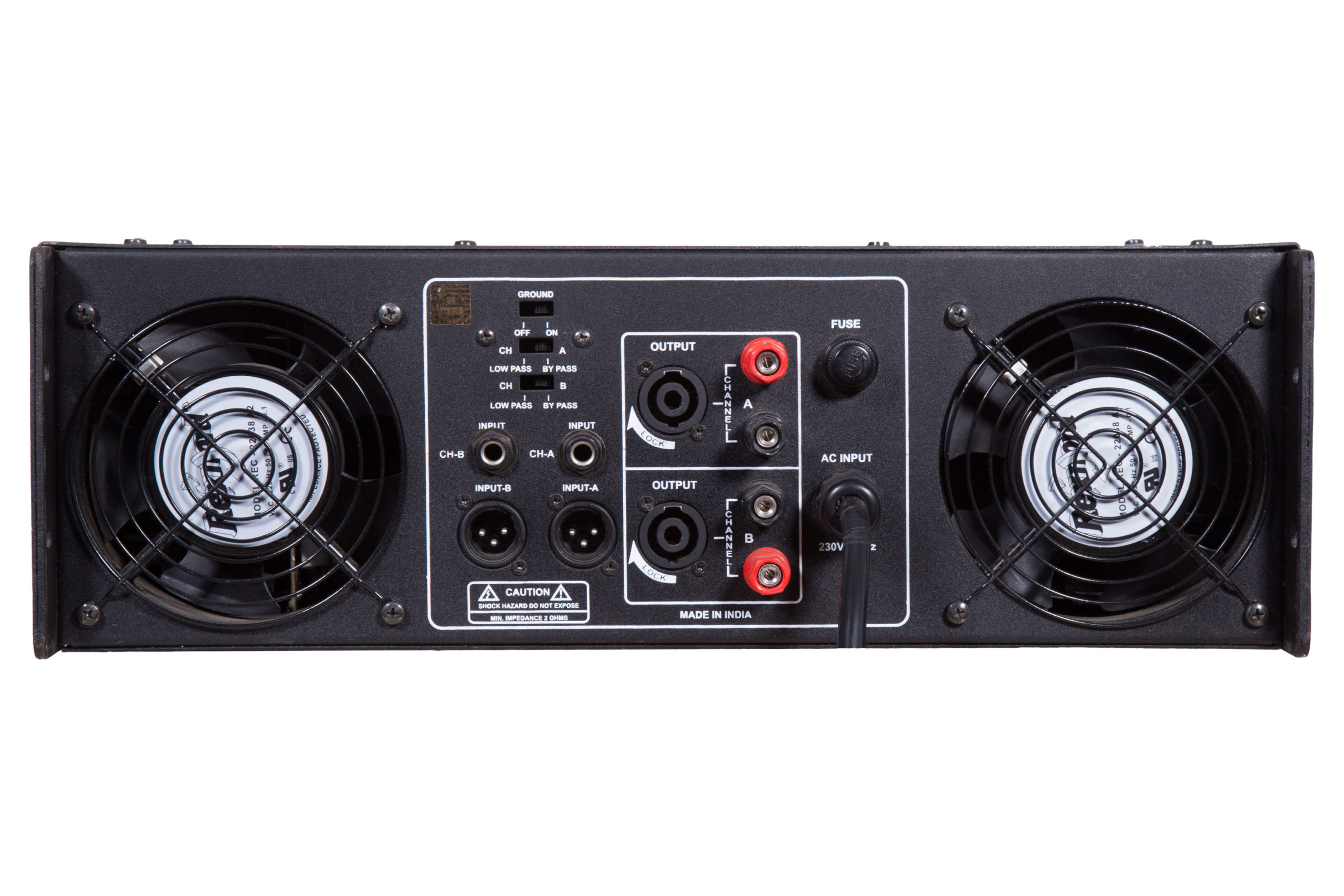

• Output termination on 4 way speakon connectors and binding posts for each channel.
• Selectable slide switch for stereo, parallel & bridge mono amp modes
• Selectable sensitivity slide switch for ( 0.775V , 1V or 1.4V)
• Selectable slide switch for low-cut (30Hz) on/off
• Selectable slide switch for ground lift in case of ground loops
• Selectable Slide Switch for HF Limiter
• Signal and Clip LED indicators to monitor performance
• Front mounted detent gain controls for easy access
• Fast recovery design for lower distortion if clipping occurs
• Low THD and high damping factor for excellent sound quality.
• Advanced protection circuitry guards against: short circuit, open circuit, thermal, and DC
• Two variable speed fans
• Rack mountable Rugged housing
• Zero Noise
