Description

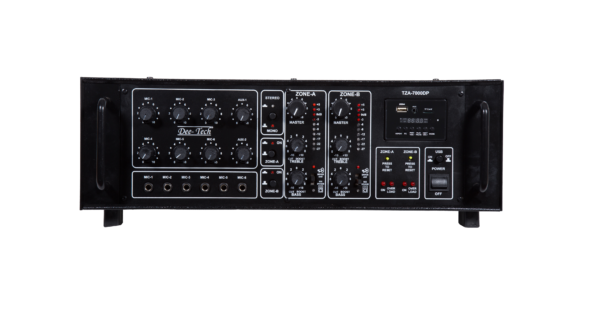

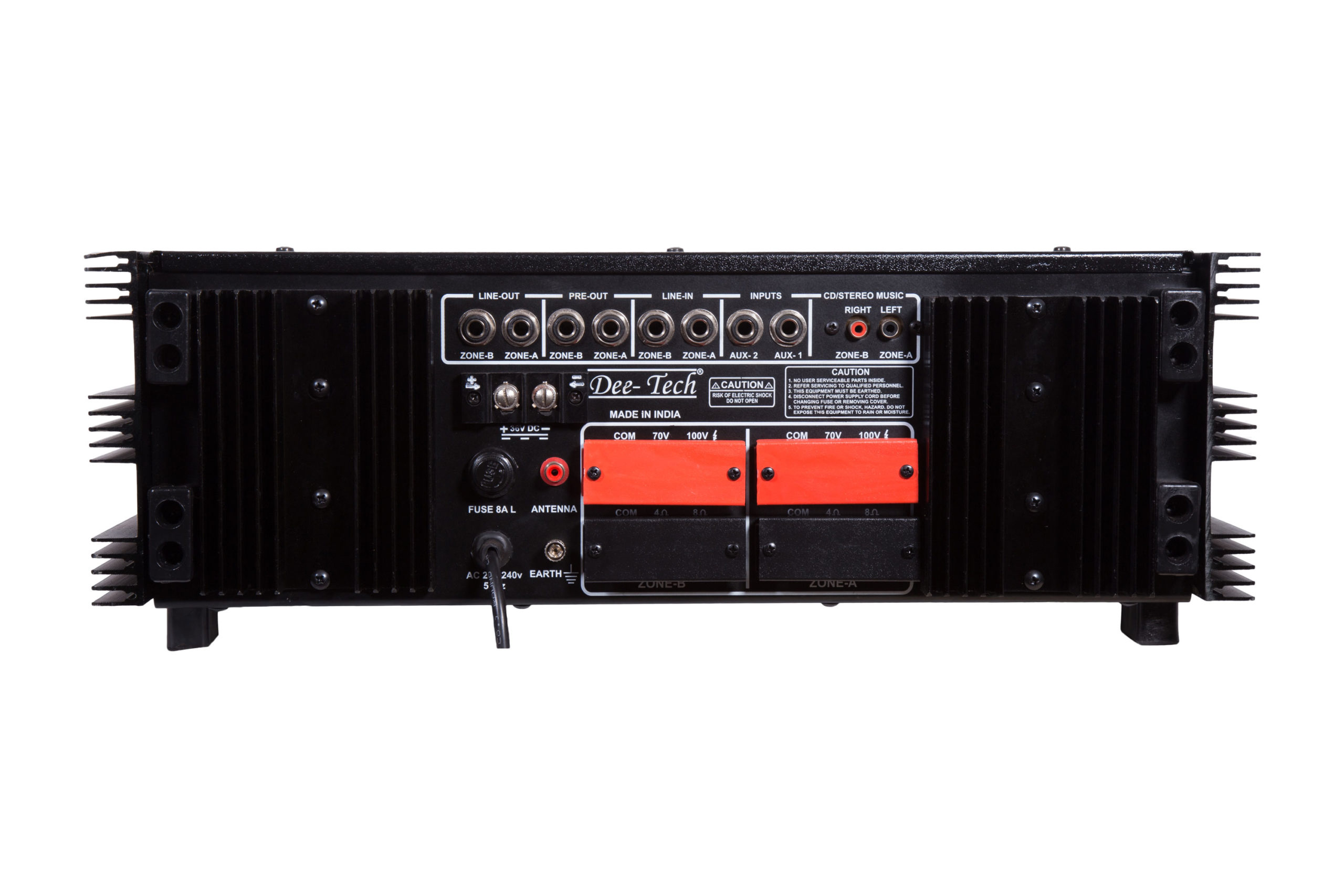

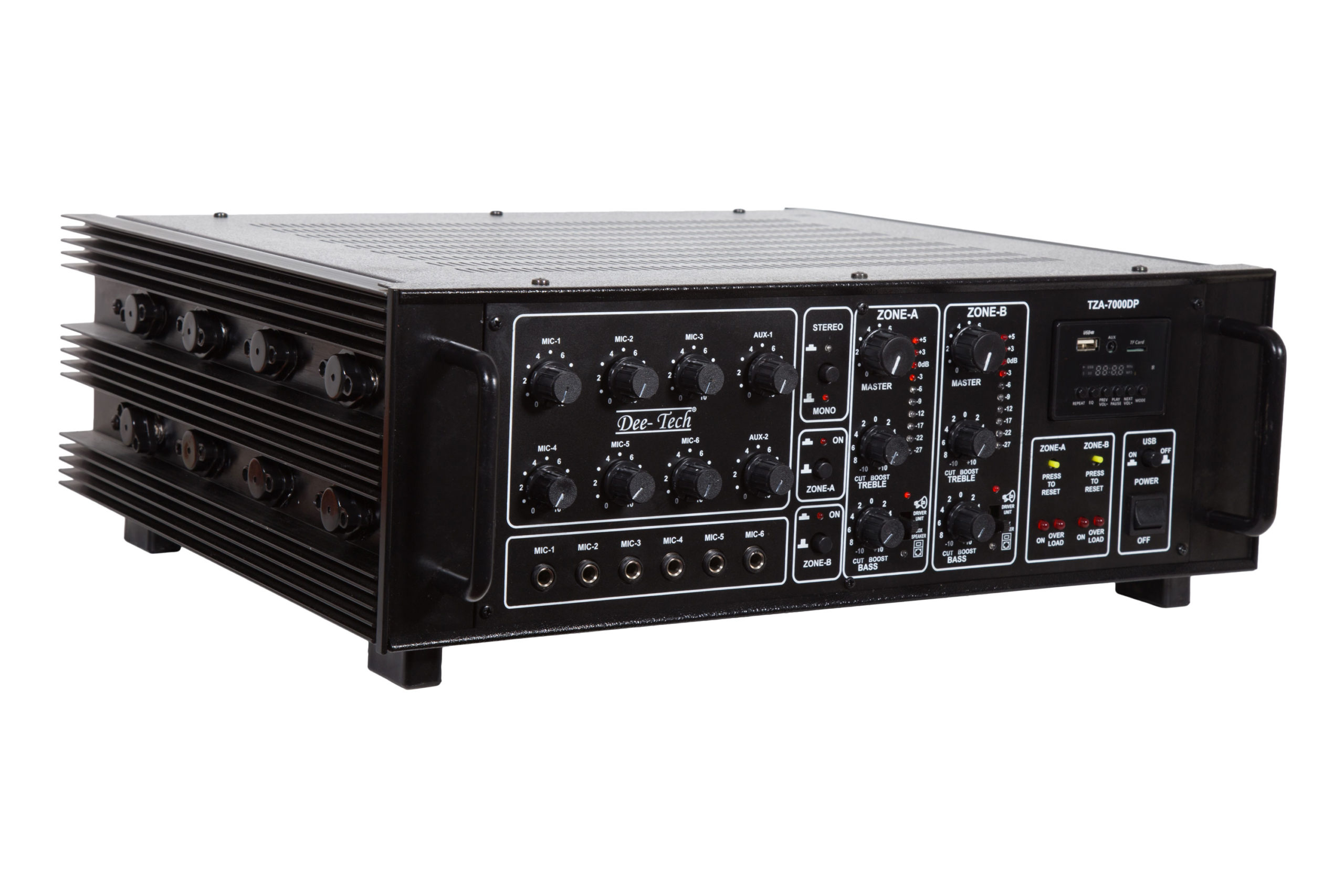

DEE-TECH PROFESSIONAL 700 WATT TWO ZONE AMPLIFIER
Model No: TZA-7000
Product: Two Zone Amplifier
Watts: 700 Watts (350+350 Watts)
Specification:
Power Output: 350W + 350W Max
Power Regulation: -2dB, No Load to Full Load at 1Khz
Input Channels: Mono 2X200 mV/100 KW
Stereo L/R 200 mV/100 KW
Line L/R 1V/50 KW
Freq. Response: 50-15,000 Hz ±3dB
Signal to Noise Ratio: 60 dB
Tone Control: Bass- ±10dB at 100 Hz
Treble: ±10dB at 10Khz
Line: 1V/KW
Speaker Matching: 4Ω, 8Ω 70V & 100V (For Each Zone)
Power Supply: AC: 220-240V 50/60 Hz, DC: 36V
Features:
- Stereo Music input for DJ programmes.
- Facilitates connection and operation of two
- Separate groups of speakers simultaneously on Mono mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Bar Graph Signal Display.
- Stereo & Mono Mode
- Stereo in RCS socket
- Fully Stereo USB Player with FM Radio
